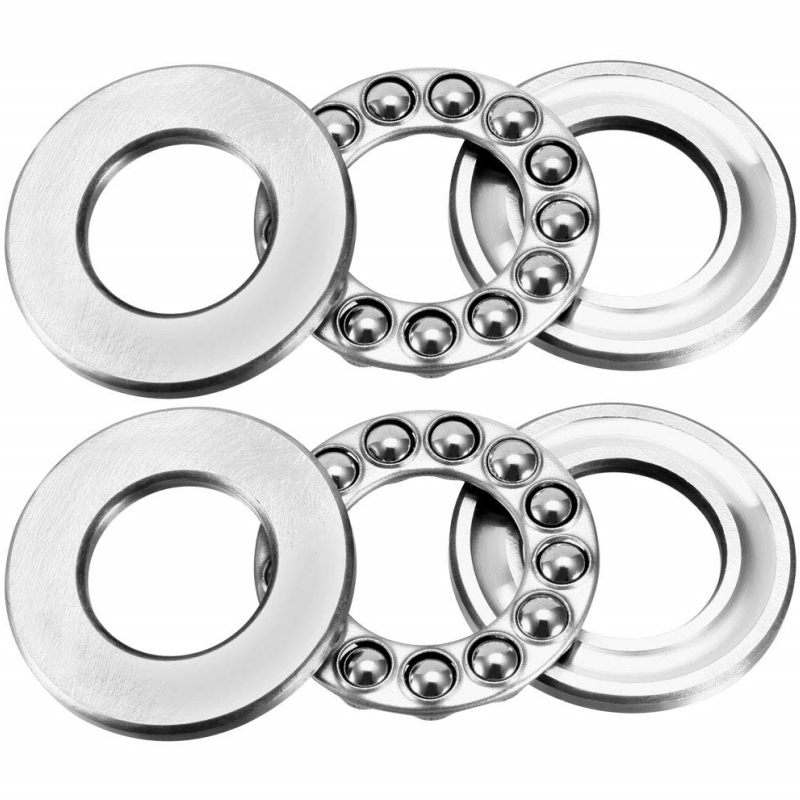

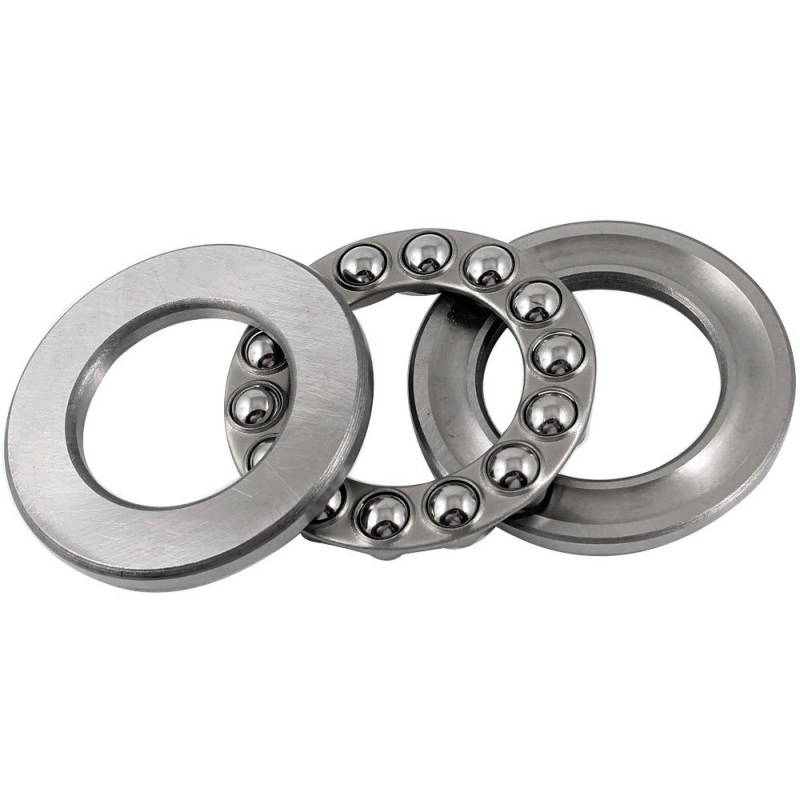

Thrust Ball Bearings

Thrust ball bearing consists of three parts: the seat ring, the shaft ring, and the cage assembly. Only applicable to components that bear axial loads on one side and have low rotational speeds, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc.

Phone : +86 15069523366

Whatsapp : +86 15069523366

Email : Kevin@dfn-bearing.com

PRODUCT SPECIFICATION

PRODUCTION AND WAREHOUSING

PACKAGING AND TRANSPORTATION

◉ PRODUCT SPECIFICATION

Bearing No.	Dimensions(mm)			Weight
Bearing No.	d	D	T	(kg)
51100	10	24	9	0.02
51101	12	26	9	0.022
51102	15	28	9	0.024
51103	17	30	9	0.028
51104	20	35	10	0.04
51105	25	42	11	0.059
51106	30	47	11	0.068
51107	35	52	12	0.09
51108	40	60	13	0.12
51109	45	65	14	0.15
51110	50	70	14	0.16
51111	55	78	16	0.24
51112	60	85	17	0.29
51113	65	90	17	0.34
51114	70	95	18	0.36
51115	75	100	19	0.42
51200	10	26	11	0.03
51201	12	28	11	0.034
51202	15	32	12	0.046
51203	17	35	12	0.053
51204	20	40	14	0.082
51205	25	47	15	0.12
51206	30	52	16	0.15
51207	35	62	18	0.22
51208	40	68	19	0.27
51209	45	73	20	0.32
51210	50	78	22	0.39
51211	55	90	25	0.61
51212	60	95	26	0.69
51213	65	100	27	0.77
51214	70	105	27	0.81
51215	75	110	27	0.86
51304	20	47	18	0.13
51305	25	52	18	0.18
51306	30	60	21	0.27
51307	35	68	24	0.39
51308	40	78	26	0.55
51309	45	85	28	0.69
51310	50	95	31	1
51311	55	105	35	1.34
51312	60	110	35	1.43
51313	65	115	36	1.57
51314	70	125	40	2.06
51315	75	135	44	2.68
51405	25	60	24	0.34
51406	30	70	28	0.53
51407	35	80	32	0.79
51408	40	90	36	1.14
51409	45	100	39	1.47
51410	50	110	43	1.99
51411	55	120	48	2.64
51412	60	130	51	3.51
51413	65	140	56	4.47
51414	70	150	60	5.48
51415	75	160	65	6.75

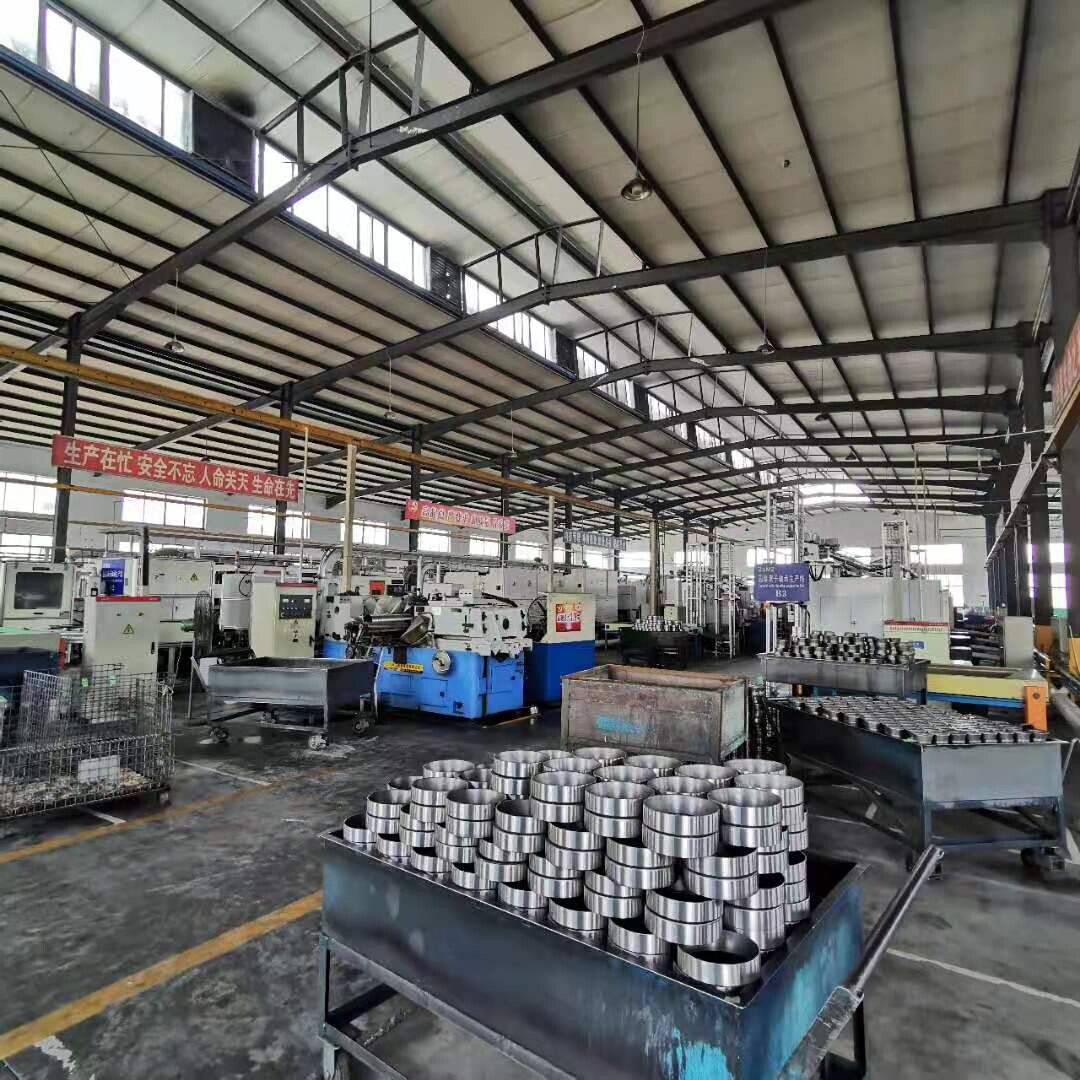

◉ PRODUCTION AND WAREHOUSING

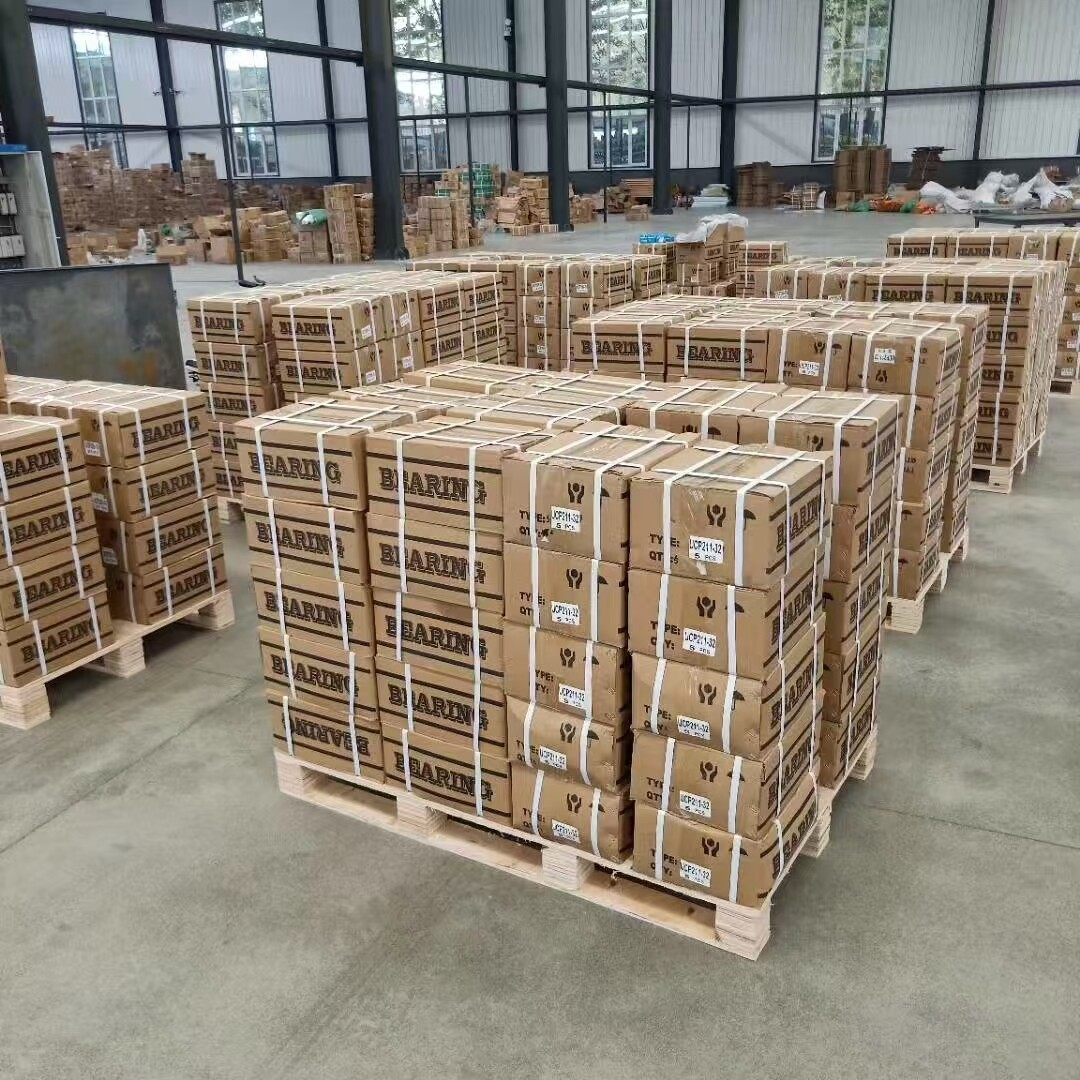

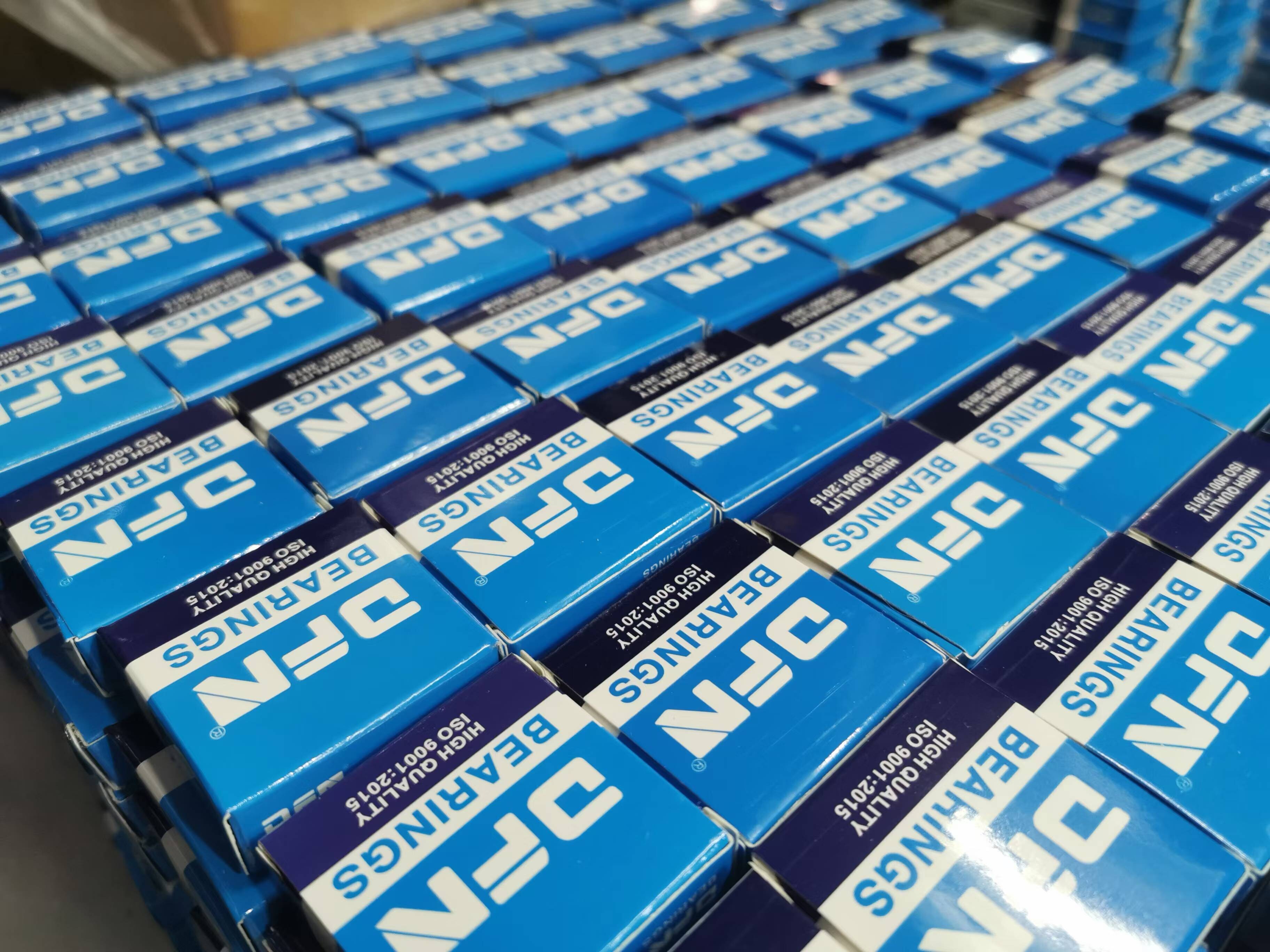

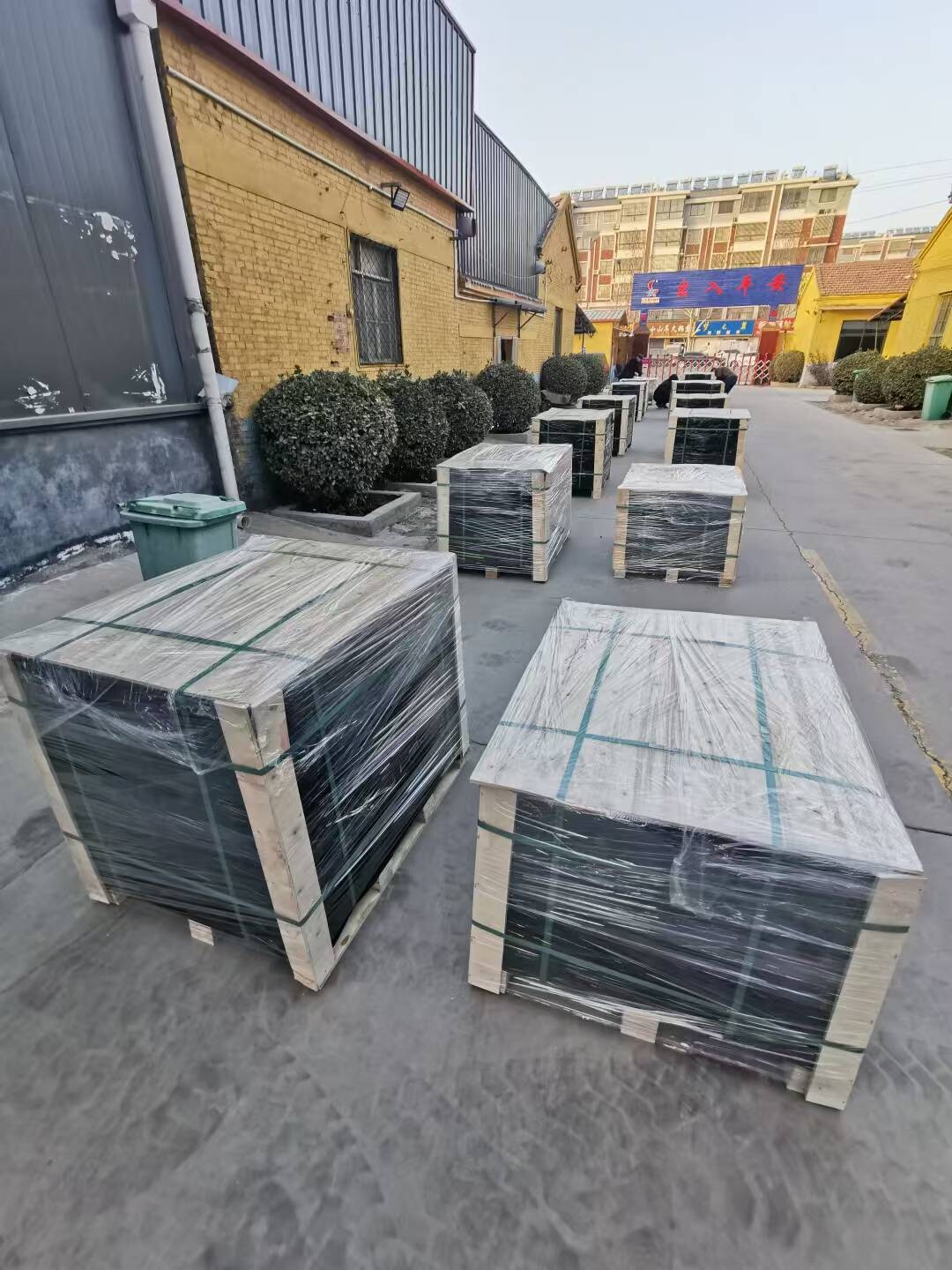

◉ PACKAGING AND TRANSPORTATION
